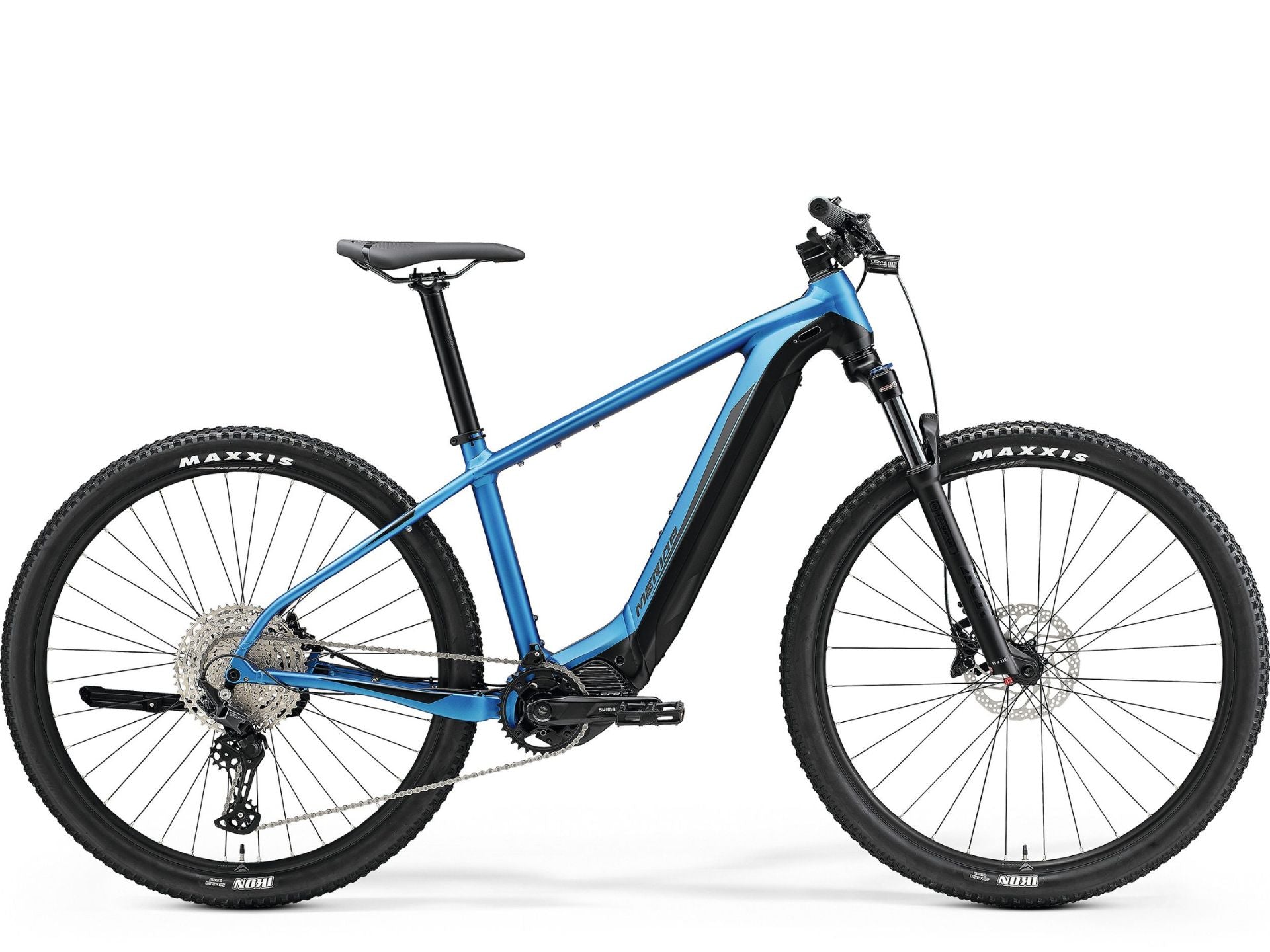

Merida eBIG.NINE 600 (Silk Blue)

• Lightweight aluminium frame with 29er wheels
• Powerful and refined Shimano EP8 assistance
• Integrated 630 Wh battery
• Confidence inspiring mountain bike handling
• Versatile enough for the trail or the commute
• Comfort and control enhancing suspension fork



Spesifikasjoner

RAMME eBIG.NINE LITE III

• material: aluminium
• 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize
• 148x12mm axle standard
• intube

RAMMESTØRRELSE S, M, L, XL

FARGE SILK BLUE/BLACK

GAFFEL SR Suntour XCR34 LOR DS

• Air Boost
• 100mm
• Tapered
• 51mm fork offset
• 29x2.4" max wheelsize

FRAMBREMS Shimano M4100

• 4 piston

BAKBREMS Shimano M4100

• 2 piston

STYRELAGER MERIDA 8157

STYRE MERIDA EXPERT eTR

• 760mm width
• 20mm rise

STYRESTEM MERIDA EXPERT eTRII

• material: aluminium
• 35mm diameter
• 0° stem angle
• GoPro & Supernova mount
• 50 mm

HOLKER / STYRETAPE MERIDA EXPERT EC

BAKGIR Shimano Deore RDM5100 11

BAKRE GIRHENDEL Shimano Deore M5100

SADELPINNE MERIDA EXPERT CC

• material: aluminium
• 34.9mm diameter
• 0mm setback

SADELKLEMME MERIDA EXPERT

SADEL MERIDA COMP SL

• V-mount

PEDAL VP VPE-537

KJEDE KMC e11S EPT

KJEDEDREV Shimano CRE70-B

• 34 teeth

KASSETT Shimano M5100

• 11-51 teeth
• 11 speed

FELG MERIDA COMP CC

• 20mm inner width
• material: aluminium

FRAMDEKK Maxxis Ikon

• 29x2.2"
• kevlar bead

BAKDEKK Maxxis Ikon

• 29x2.2"
• kevlar bead

NAV FRONT Shimano MT400-B

• 110x15mm width front hub
• 32 spoke holes
• Centerlock

NAV BAK Shimano MT400-B

• 148x12mm width rear hub
• 36 spoke holes
• Centerlock

BAKAKSLING MERIDA EXPERT TR

• including removeable lever, 6/4mm allen key

BREMSESKIVE FRONT Shimano RT30

• 180 mm

BREMSESKIVE BAK Shimano RTEM300

• 180 mm

EIKER Black stainless

LYS Lezyne E-Bike Power E115 / Dlight CG-214RG

• StVZO
• reverse MERIDA Custom Mount
• STVZO
• USB

STØTTE Massload CL-KA98

BATTERILÅS Abus key

MOTOR Shimano EP8

• 85Nm

BATTERI Shimano E8036

• 630Wh

DISPLAY Shimano SC-E5003A

KRANK Shimano FCEM600

• 165 mm

KJEDEFØRER Jagwire LEX40-L3
